Hertz Spl Show S8 Dsp Compact Digital Interface Processor 6 In + Digital In & 8 Outputs

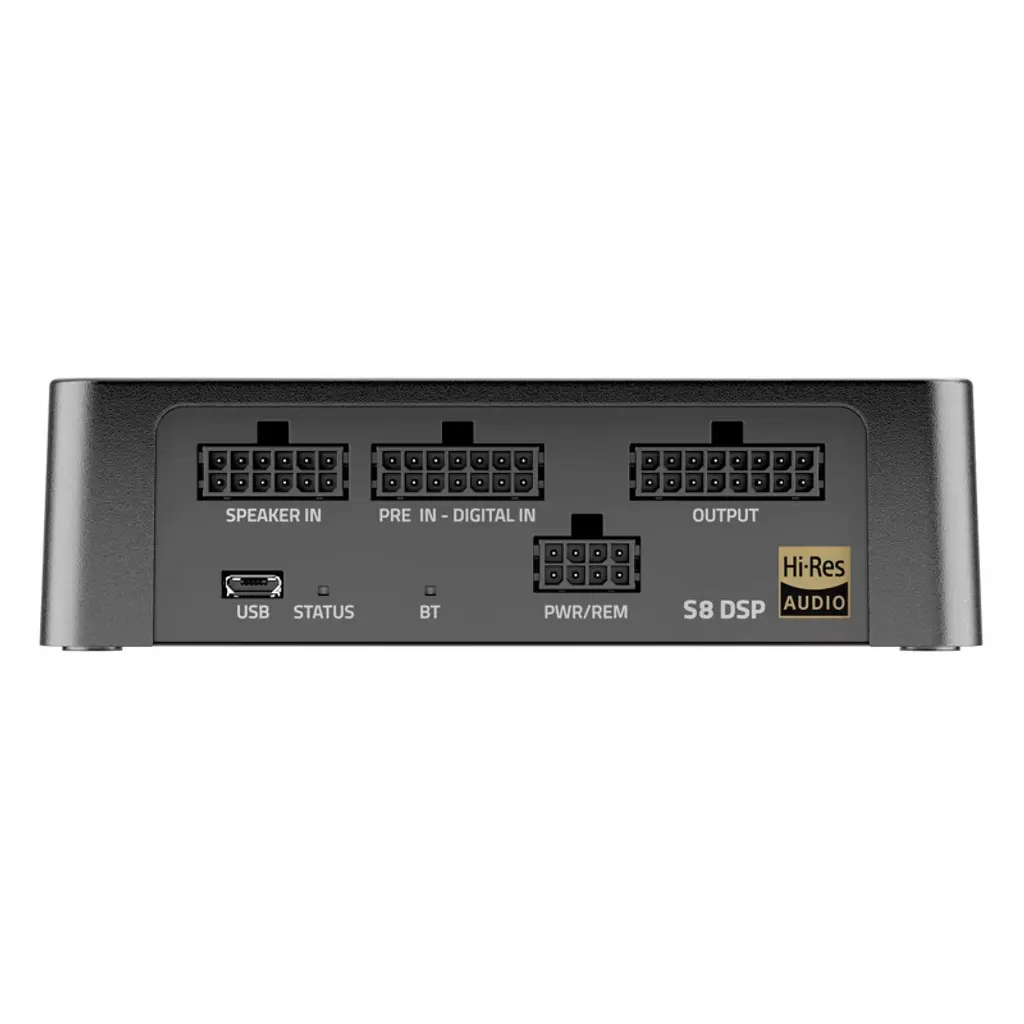

The ultra-compact S8 DSP is the perfect solution for integrating any OEM source into your audio upgrade project for cars, motorcycles, and boats! S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials. S8 DSP processes the audio signal with 96 kHz / 24-bit resolution and has obtained the Hi-Res certification from the JAS (Japan Audio Society), an acknowledgment that certifies the extreme level of audio performance achieved. The powerful 32-bit DSP manages 6 high/low-level analog input channels, one digital coaxial input, and 8 output channels, offering maximum freedom of configuration to the specialist. The SPDIF coaxial input is ideal for digital connection with a Hi-Res player, a solution that allows for maximum listening quality. For each of the eight output channels we have a level control, the 15-pole parametric equalizer, time delays, and crossover filter available. The 7-band parametric equalizer of the input signal allows obtaining a flat response from OEM sources, which often have an exaggerated emphasis on the low frequency. General Specifications - • Nominal Power supply voltage / fuse: 7 ÷ 20 VDC / 1A • Pulse operating voltage: 5 ÷ 24 VDC • Idling current: 0.34 A • OFF current (ART= OFF): <80 uA • OFF current (ART= ON): <80 uA • Remote IN 6 ÷ 20 VDC (10 mA) • Remote OUT 4 ÷ 20 VDC (150 mA) • ART - Automatic Remote Turn on/off from BTL speaker outputs (selectable): 1.5 ÷ 7 VDC Digital Signal Processor - • Sample rate: 96KHz • Bit depth: 24 • Output equalizer: 15 bands per channel w/ adjustable Q and Frequency • Equalizer resolution: 1/10th dB per step +12dB / -12dB • Time alignment (distance): 0 ÷ 468.4 cm / 0 ÷ 184.4 inches • Time alignment (time): 0 ÷ 13.5ms • Time alignment (step): 0,08 ms; 2,8 cm / 1.1 inch • Time alignment (fine set): 0,02 ms; 0,7 cm / 0.27 inch
