Tz-8112 Limit Switch Roller Plunger 1Nc,1no For Cnc Mill Laser Plasma Ip65 2Pcs - 2 Pack - 8112 Ip65 - 2 Pack - 8112 Ip65

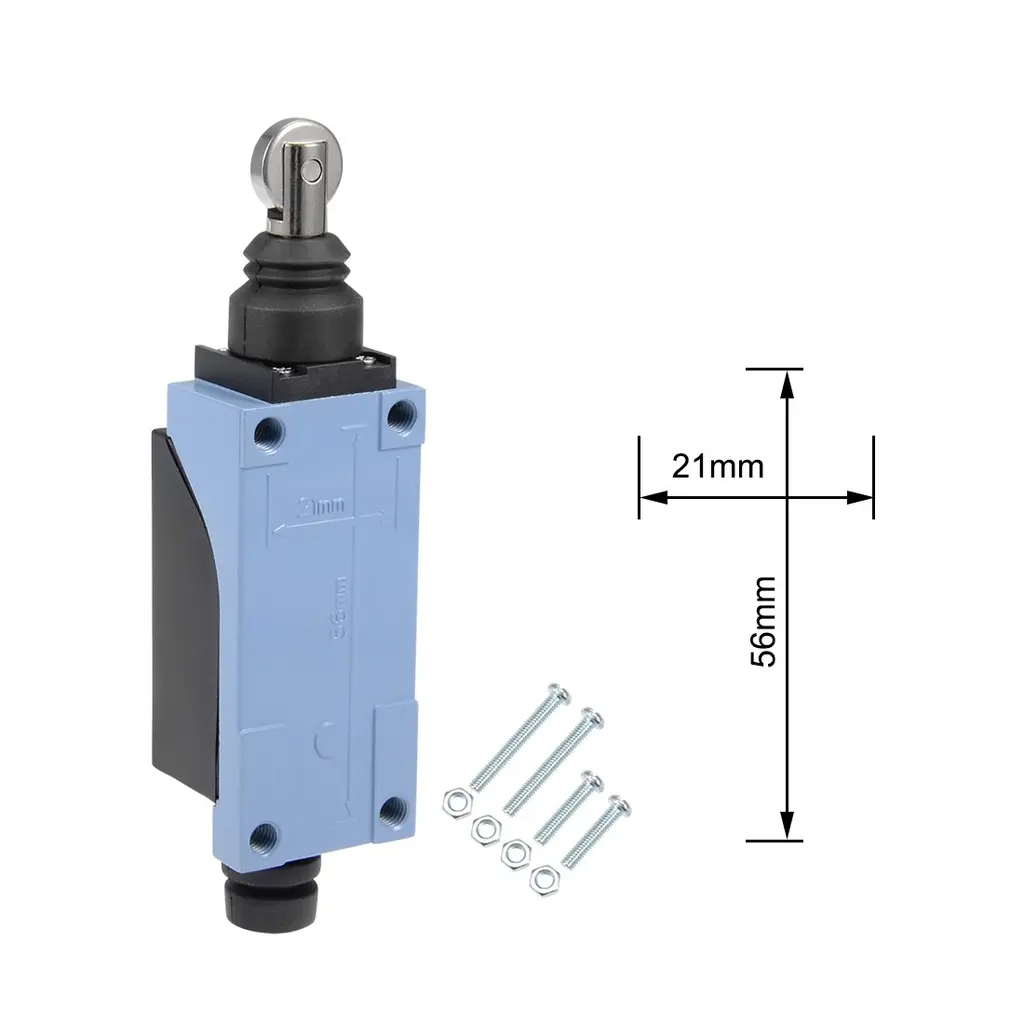

Specifications:Product Name: Limit SwitchModel: TZ-8112Actuator Type: Roller Plunger TypeRated Voltage:AC-15: (Ue/Ie) 250V/6ADC-13: (Ue/Ie) 220V/0.3AContact Configuration: 1NC+1NOMounting Hole Size: M5Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W) Note:The roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator.Position detection accuracy is high. Operating Characteristics:OF max.: 900gRF min.: 150gPT max.: 1.5mmOT min.: 4mmMD max.: 1mmOP: 37+/-0.8mm Features: Product Contents:2 x Limit Switch with mounting screws
