Vevor 1 Hp Pool Pump Motor Ccw Rotation Round Flange Replacement Motor - 0.75hp+56j Frame

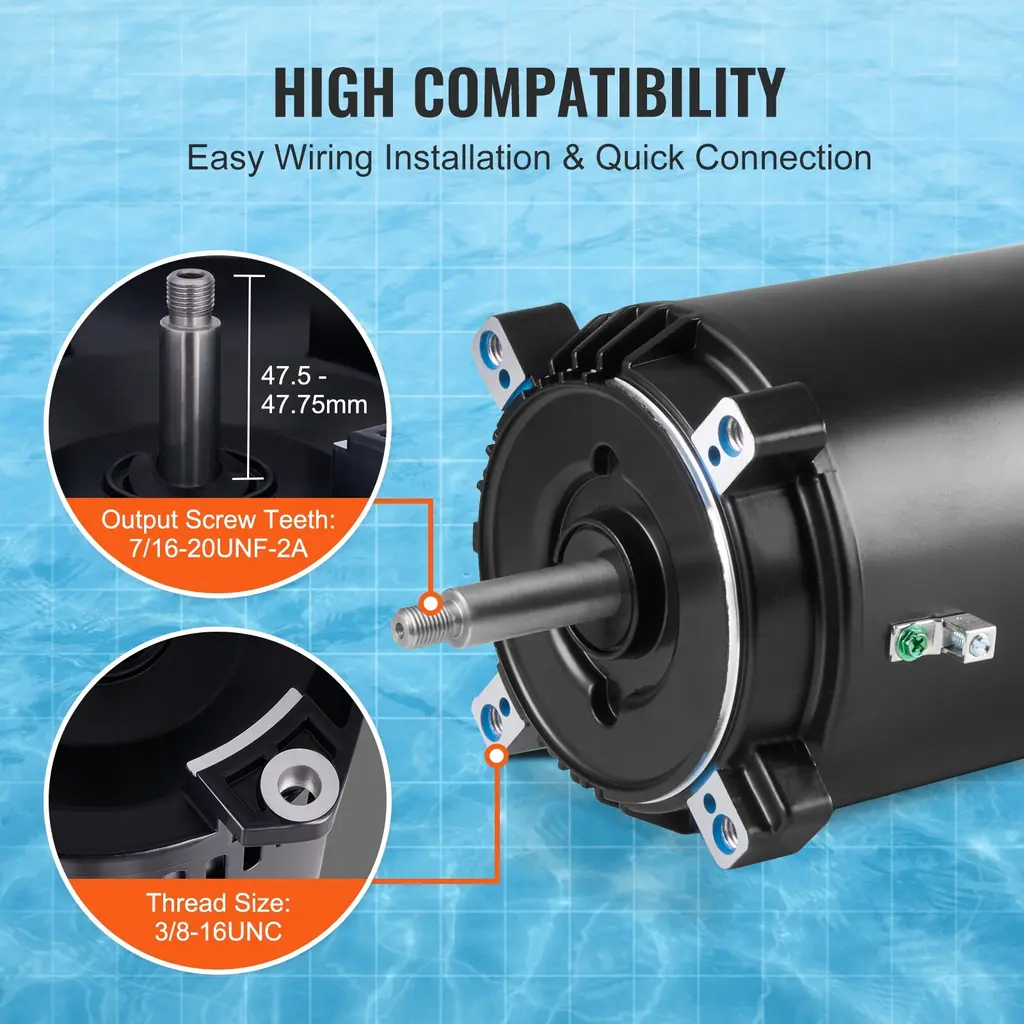

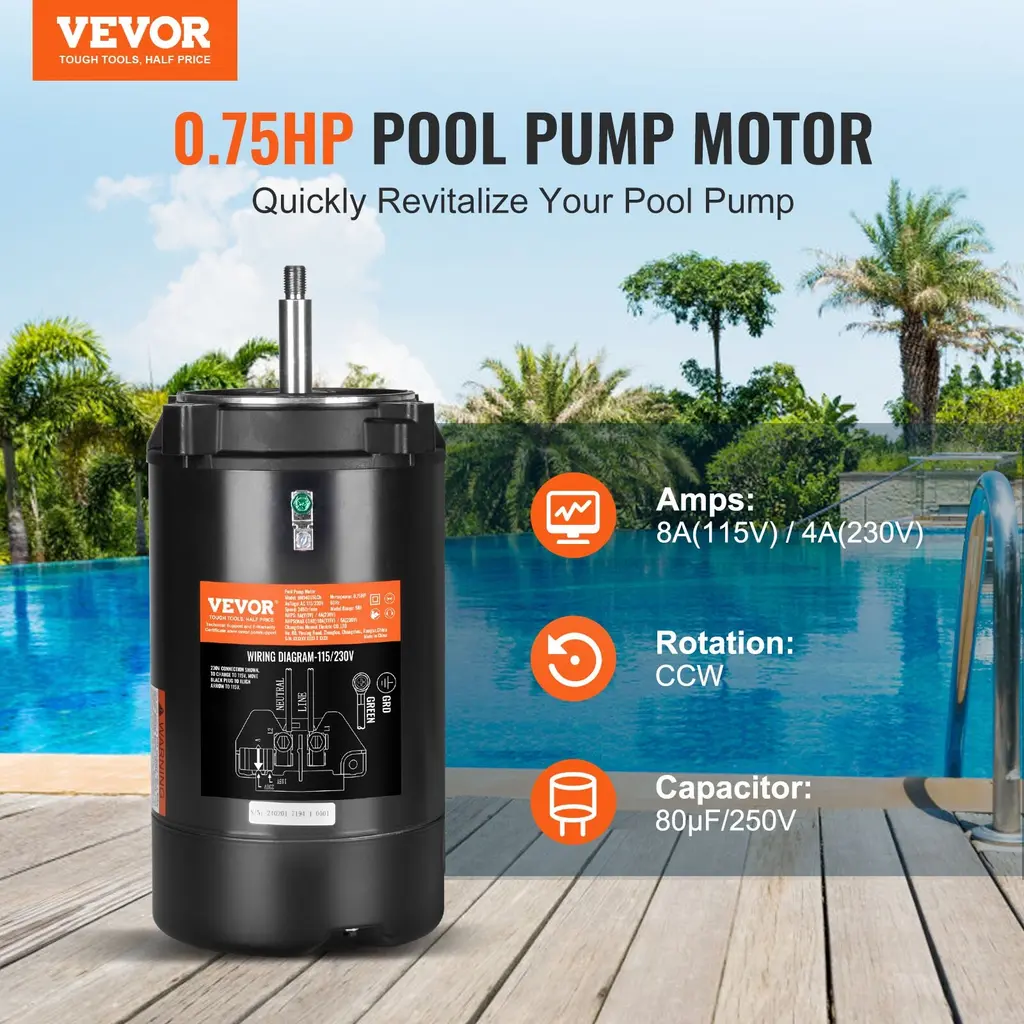

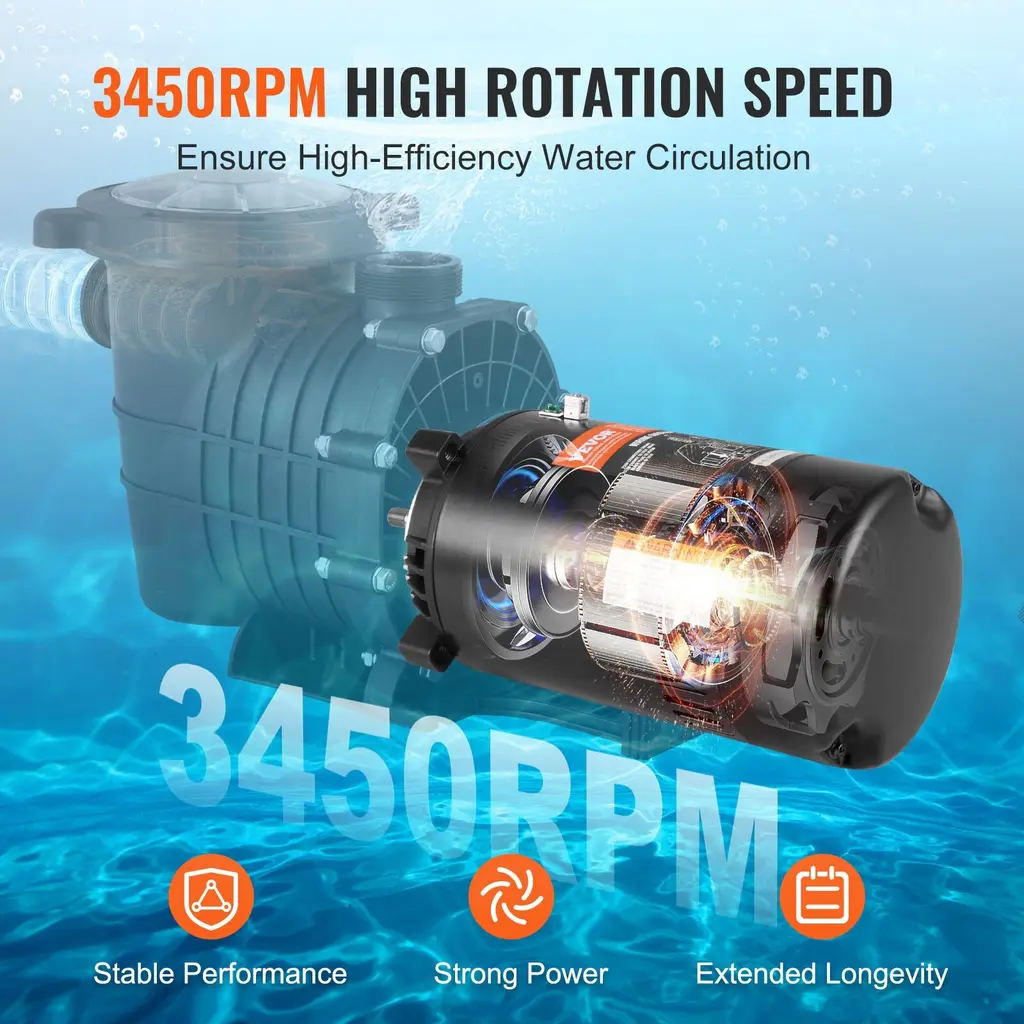

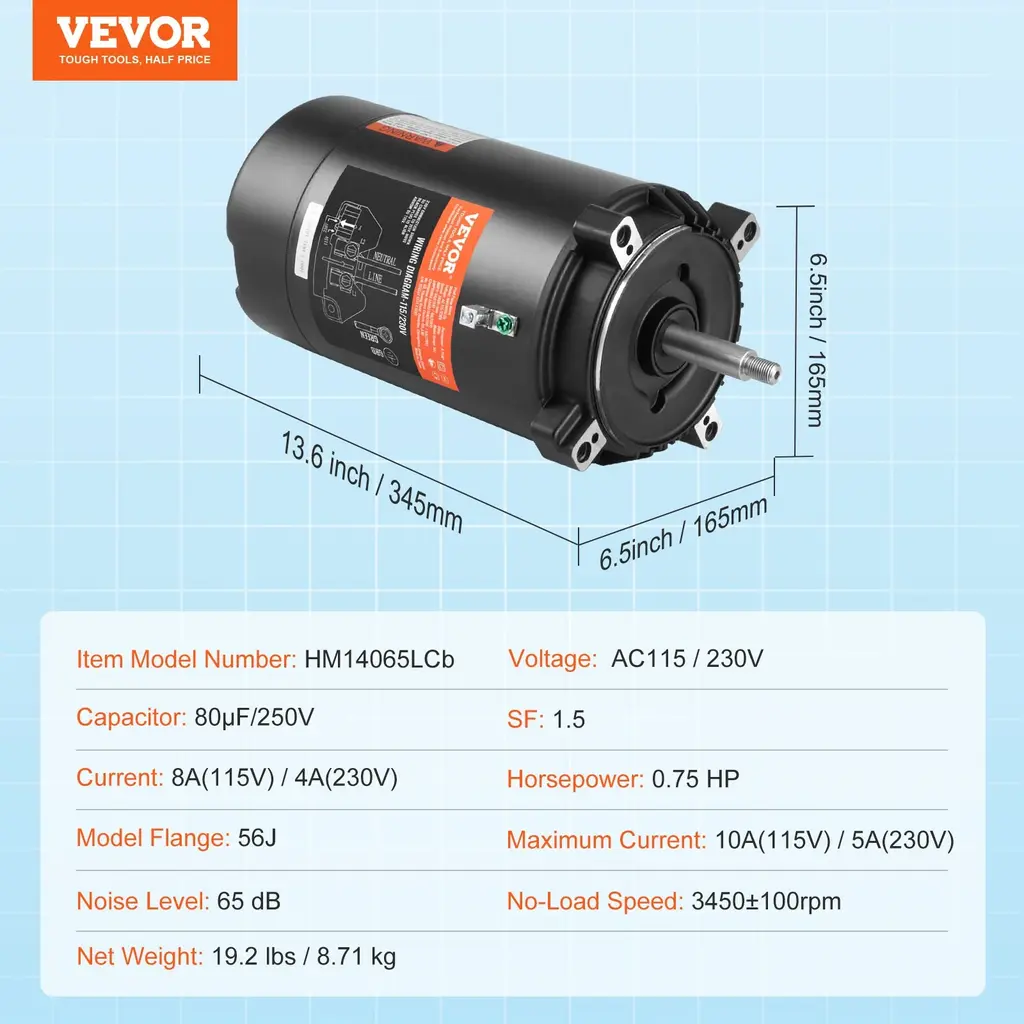

Reliable Performance: VEVOR 1HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system.1HP 56J Frame:Voltage - AC 115/230V; Amps: 9.8/4.9A ; Amps (Max Load): 12.4/6.2A ; SF: 1.4 ; Capacitor: 90μF/250V ; Model Flange: 56J;0.75 HP 56J Frame:Voltage - AC 115/230V; Amps: 8/4A ; Amps (Max Load): 10/5A ; SF: 1.5 ; Capacitor: 80μF/250V ; Model Flange: 56J; 1.5 HP 56Y Frame:Voltage - AC 115/230V; Amps: 12.8/6.4A ; Amps (Max Load): 14/7A ; SF: 1.1 ; Capacitor: 90μF/250V ; Model Flange: 56Y; 2 HP 56Y Frame:Voltage - AC230V; Amps: 7.8A ; Amps (Max Load): 10.2A ; SF: 1.3 ; Capacitor: 50μF/250V ; Model Flange: 56Y; 1 HP 56Y Frame:Voltage - AC 115/230V; Amps: 9/4.5A ; Amps (Max Load): 11/5.5A ; SF: 1.25 ; Capacitor: 90μF/250V ; Model Flange: 56Y; 1.5 HP 56J Frame:Voltage - AC 115/230V; Amps: 13.6/6.8A ; Amps (Max Load): 17/8.5A ; SF: 1.3 ; Capacitor: 90μF/250V ; Model Flange: 56J. Easy Installation:Fro 56J Frame option,installing our pool pump motor is a breeze with a thread size of 3/8-16UNC, output screw teeth of 7/16-20UNF-2A, and a 1.9-inch shaft extension.For 56Y Frame option,Installing our swimming pool pump motor is a breeze with a thread size of 4-φ10.8mm, output screw teeth of 1/2-20UNF-2A, and a 0.9-inch shaft extension. Get detailed installation instructions with the included user manual. Safety and Durability: Our pool pump motor is fortified with corrosion-resistant steel housing, low starting torque, and ball-bearing construction. Combined tested to UL standards and overload protection, it ensures safe and enduring power support for pool system. High Efficiency, Energy-Efficient: VEVOR pool pump motor combines powerful performance with minimal energy consumption, operating at 3450RPM high speed while maintaining 65db/70db low noise level. Dive into a refreshing pool experience with reliability and tranquility. Revitalize Your Pool Pump: Pump it up for all your pools. Our versatile pool pump motor caters to various types of pools - from residential to commercial settings, bringing you a clean and clear swimming water environment, thereby enhancing pool performance and vitality.  Package Content 1 x Instruction Manual
